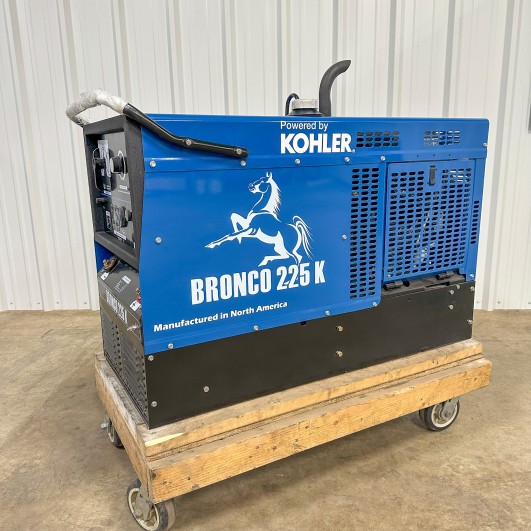

Infra Bronco 225 K

TECHNICAL SPECIFICATIONS:
Rated Output Current 100% Duty Cycle: 200 A @ 25 V, DC
Current Range: 40-200 A, DC
Maximum Open Circuit Voltage: 70 V DC
Auxiliary Power Output 1 Phase 60 Hz: 10,000 W peak, 9,500 W continuous, 120/240 V
Battery Power Startup System: Electric 12 V, DC

PROCESSES:
• Stick welding (SMAW) diameters out of 1/16” to 3/16”
• TIG Welding (GTAW) in DC with optional high-frecuency unit

ENGINE SPECIFICATIONS:
• KOHLER model CH730 with 23 HP @ 3600 RPM
• Low consumption gasoline engine
• Solid state system
• Protection against low oil pressure

APPLICATIONS:
• Manufacture of metal structures for advertisements, bridges, containers, low and medium pressure pipelines
• Reconstruction of agricultural and construction equipment
• Maintenance of agricultural farms and ranches
• Lighting in dark work areas
• Operation of power tools

SUPPLIED WITH:
• Fuel gauge
• Manual, which includes: operations guide, maintenance guide, list of parts and warranty policy

ADVANTAGES:
• Power startup with 12 V battery (includes battery)
• Automatic speed control
• Alternator-type generator specifically designed for welding operations
• Range selector switch
• Hour-meter to register operation time
